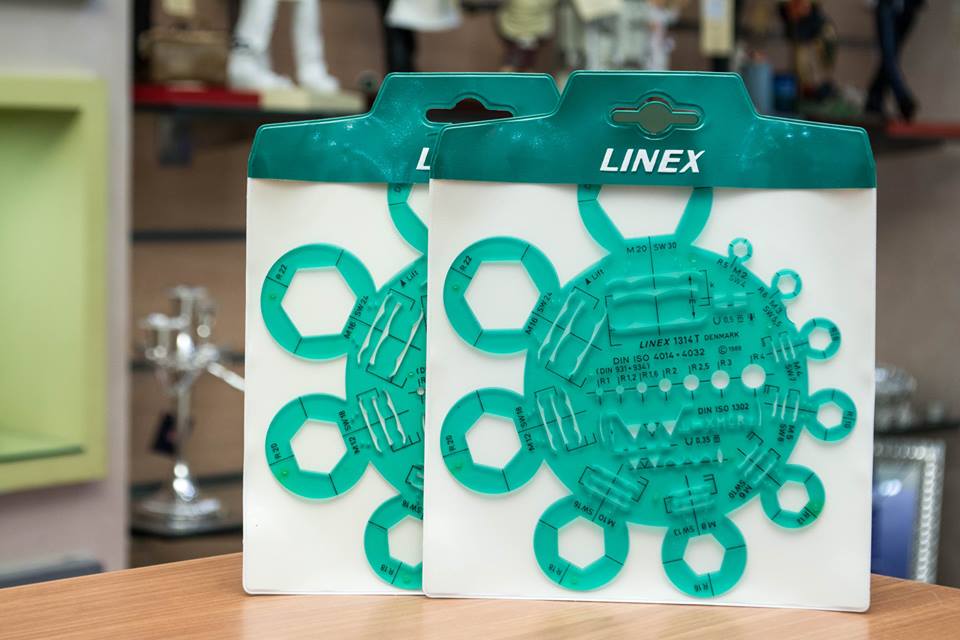

Linex Nut & Radius Template
Linex Nut & Radius Template
Regular price
LE 140.00 EGP
Regular price
Sale price
LE 140.00 EGP
Unit price
/
per
لينكس شبلونة صواميل

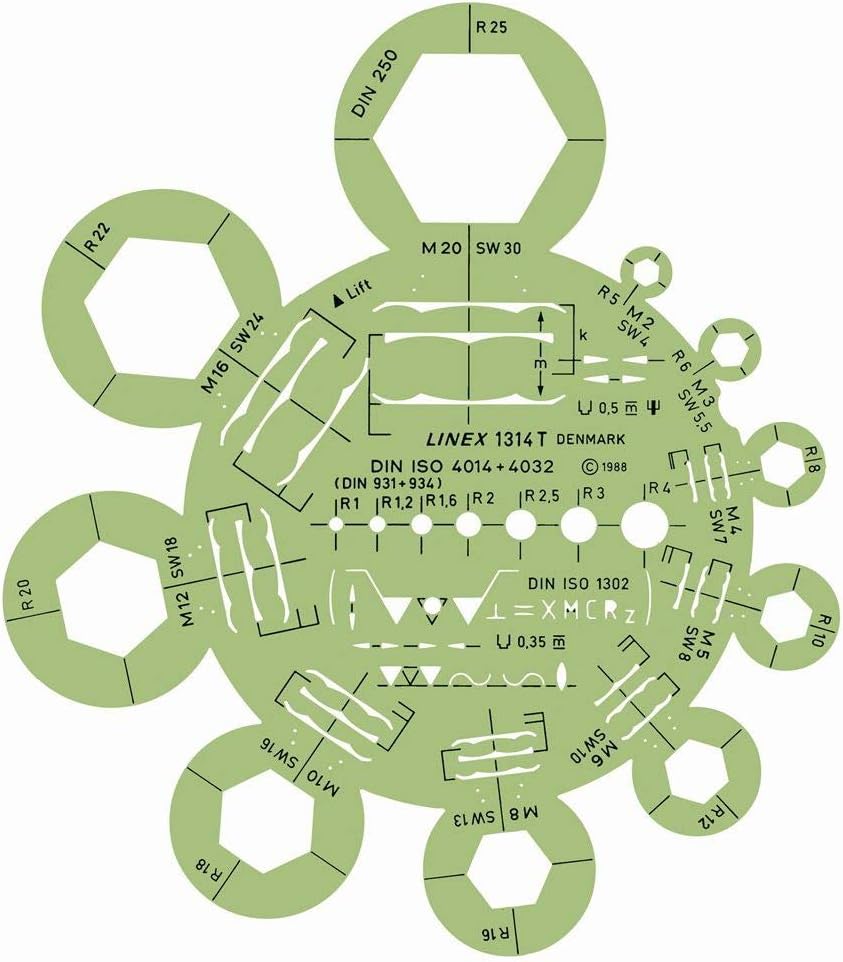

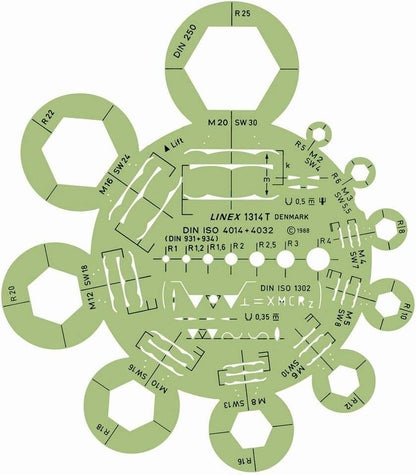

The Linex Nut & Radius Template is an indispensable precision tool for mechanical engineers, drafters, and technical illustrators. Designed to streamline the drawing of standard hexagonal nut shapes and smooth rounded corners, this template ensures mathematical consistency and professional-grade accuracy in every layout.
☆ Product Features ▼
- Standard Nut Profiles: Features a wide range of hexagonal cutouts calibrated to standard mechanical nut sizes for rapid technical rendering.
- Precision Radius Cutouts: Includes multiple circular and radial arcs for drawing perfect corners and curved transitions without a compass.
- Integrated Centering Marks: Each cutout is equipped with alignment axes to ensure pinpoint placement on your drawing's center lines.
- Ink Bosses: Raised bumps on the underside lift the template slightly off the paper, preventing ink smudges and ensuring clean lines.
◈ Materials and Care ▼
- Material: Crafted from premium, transparent green-tinted plastic for maximum visibility and long-term durability.
- Care: Simply wipe with a soft, lint-free cloth to remove graphite or ink residue. Avoid abrasive cleaners.
- European Quality: Manufactured to Linex's rigorous standards for edge smoothness and dimensional accuracy.
☑ Merchandising Tips ▼
- Engineering Staple: A must-have for students and professionals in mechanical engineering and industrial design.
- Niche Targeting: Perfect for model makers and hobbyists who need to render realistic bolt heads and hardware details.
- The Linex Advantage: Highlight this as a premium European alternative to generic templates for more demanding drafting tasks.
